- High-concerned chemical: None
- Origin: Mainland China
- application: Beverage, Machinery & Hardware, Apparel, Textiles
- packaging type: Cartons
- packaging material: Plastic
- automatic grade: Automatic
- driven type: Electric
- Voltage: 380V 50Hz 3p
- place of origin: Shandong, China
- brand name: FL
- dimension(l*w*h): 1600*700*1170mm
- After-sales Service Provided: commissioning and training, Field Maintenance and Repair Service
- warranty: 2 Years
- key selling points: High-Accuracy
- machinery test report: Provided
- video outgoing-inspection: Provided
- core components: PLC, Motor
- Product name: Semi auto Shrink Wrapping Machine
- Power: 6.8(Kw)
- Power supply: 220/380(V)

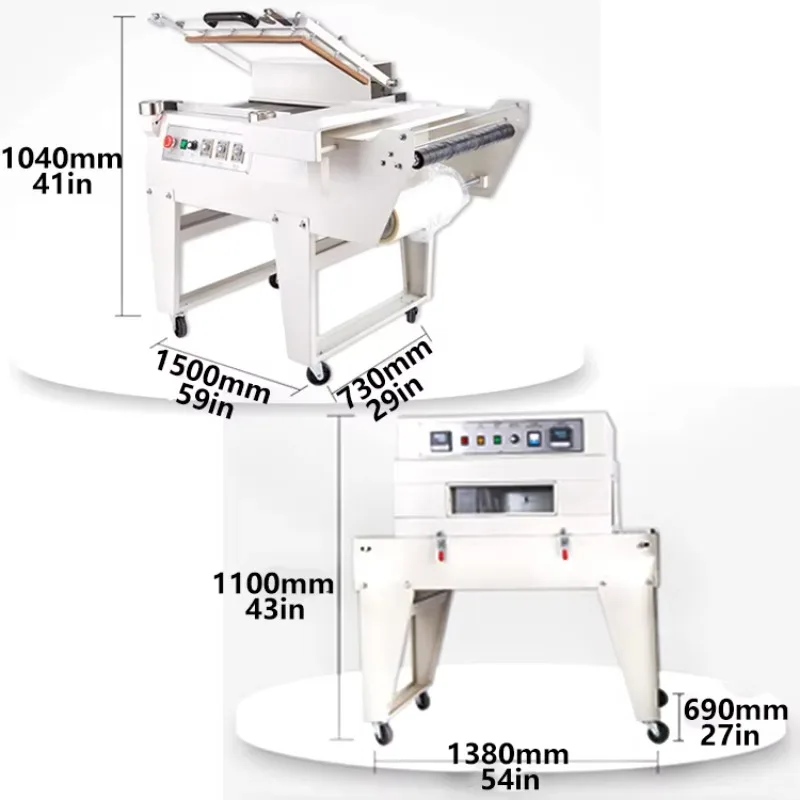

- Machine size: 1600*700*1170mm
- Maximum sealing size: 400*500*125mm
- Working efficiency: 0-15 M/min(pcs/h)
- Maximum Packaging Size: 400*500*125(mm)
- Weight: 210(kg), 210 KG
- Packaging type: Film
- Conveying speed: 0-15 M/min
- Type: Wrapping Machine
- Applicable Industries: Hotels, Machinery Repair Shops
- After Warranty Service: Online support, Spare parts, Field Maintenance and Repair Service
- Local Service Location: None
- Showroom Location: None
- Condition: New
- Warranty of core components: 2 Years
- Certification: CE
- Marketing Type: Hot Product 2023
Shrink Wrap Machine for Small Boxes

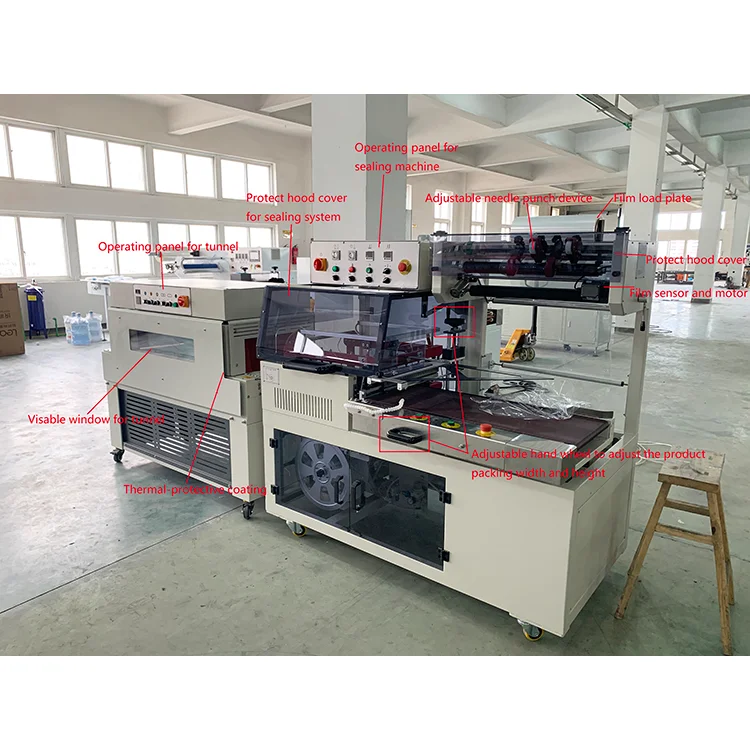

RL-400 is a fully automatic shrink packaging machine including l sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. it is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.

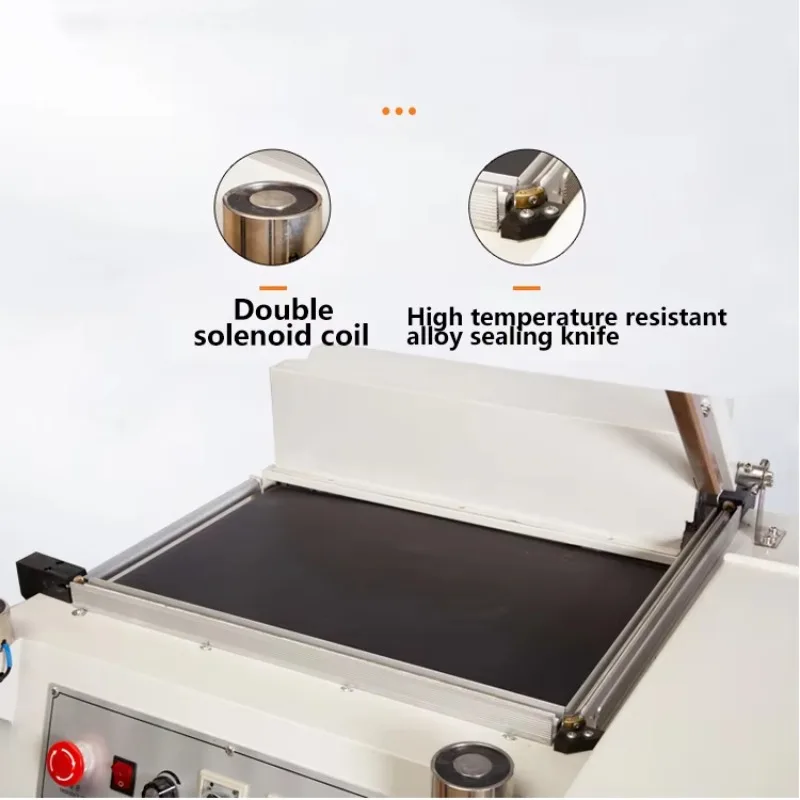

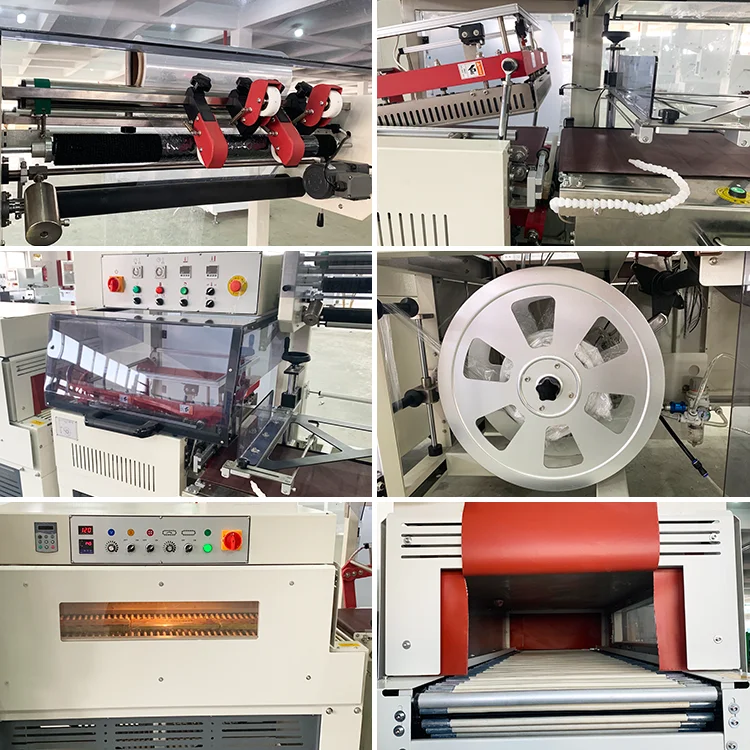

1. Special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better performance of heat conduction.
2. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. packing length can be detected by the sensor automatically.
3. Different products with different sizes can be packed together as promotional package.

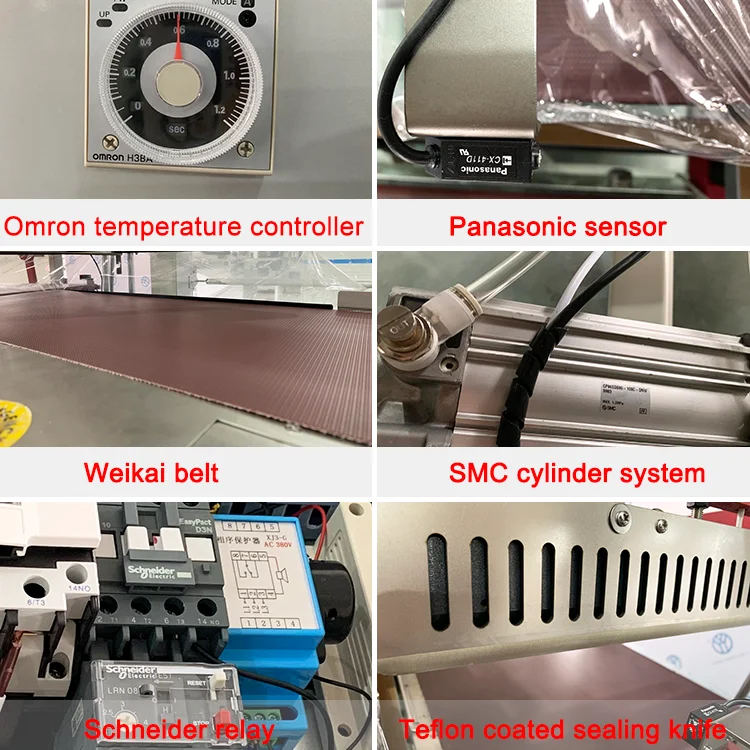

4. Adopt omron brand parts such as temperature controller, timer, relay, switch, and sensor.
5. Alarm for scrap film break or full.
6. A pair of photoelectric switch in vertical for thin products.
7. Optional closing conveyor for small products.
8. Optional sensor for transparent products.
| MODEL | RL-400 |
| Sealing Type | L-Sealing |
| Installed Power | 380V/50-60HZ/3Phase |
| Packing Capacity | Max. 35 packs per minute (depends on product size) |
| Sealing Height | 125MM |
| Packing Width | 350MM |
| Conveyor Speed | Variable, 26M/Min |
| Film Thickness | 12-30 Micron (Minimum-Maximum) |
| Packing Size | Width + Height < 400mm, Length + Height < 480mm |
| Film Type | Center Folded POF/ PVC Film |
| Max Film Roll Size | 530MM (Width) X 280MM (Outer Diameter) |
| Power Consumption | 1.5 KW |
| Working Height | 780-850 MM |
| Air Pressure | 0.5MPA (5 BAR) |
| MODEL | RYT-4020 |
| Power Supply | 380V/50-60HZ/3Phase |
| Oven Size | 1200MM (L), Entrance 450(W) X 220(H) MM |
| Conveyor Speed | Variable, 40 M/Min |
| Conveyor | Chains with Rotating Silicon Coated Rods |
| Rated Power Consumption | Max. 7 KW |
| Working Height | 780 – 850 MM |
| Machine Material | Carbon Steel |

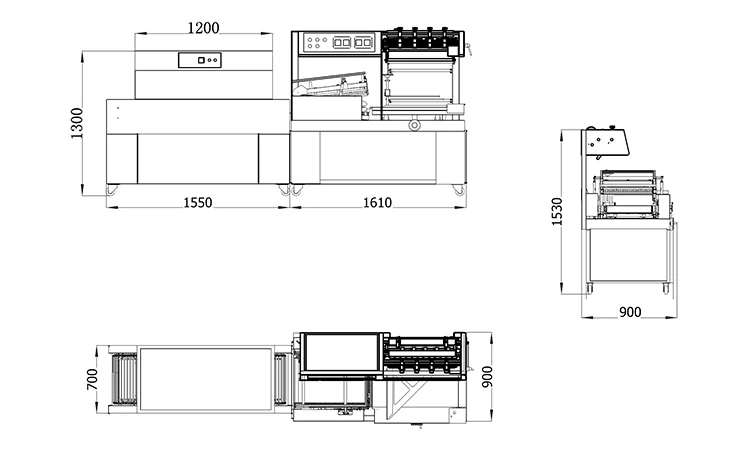

| Tunnel Machine Dimensions | 1550 X 700 X 1300 MM |
| Weight (Net/ Gross) | 490KGS/ 540KGS (For Reference Only, Including Sealer and Tunnel) |
