- Charge Status: No
- High-concerned chemical: None
- Origin: Mainland China
- production capacity: 20bag/min, 25bag/min, 15bag/min, 10bag/min
- Weight (KG): 350
- function: FILLING, Labeling, Sealing, Packing
- application: Chemical, Food, Machinery & Hardware
- packaging type: Bags, Pouch, Stand-up Pouch
- packaging material: Plastic, Wood, Paper
- automatic grade: Automatic
- driven type: Pneumatic
- Voltage: 110V/220V/240V/380V/415V/440V
- dimension(l*w*h): 1730X830X1650mm
- warranty: 2 Years
- key selling points: Automatic
- machinery test report: Provided
- Video outgoing-inspection: Provided
- core components: Motor, PLC, Gear, Bearing
- After-sales Service Provided: Engineers available to service machinery overseas
- Packing speed: 10-16bags/min
- Bag type: zipper bag, box pouch, stand up pouch
- Bag width: 80-280mm
- Bag Length: 70-320mm
- Series: multi-function packaging machines
- Machine Material: SS#304
- Application: laundry pod, detergent pod
- Film Material: OPP/CPP,OPP/PE, MST/PET/PE
- Controller System: PLC
- Type: Multi-Function Packaging Machine
- Condition: New
- Warranty of core components: 2 Years
Products Description

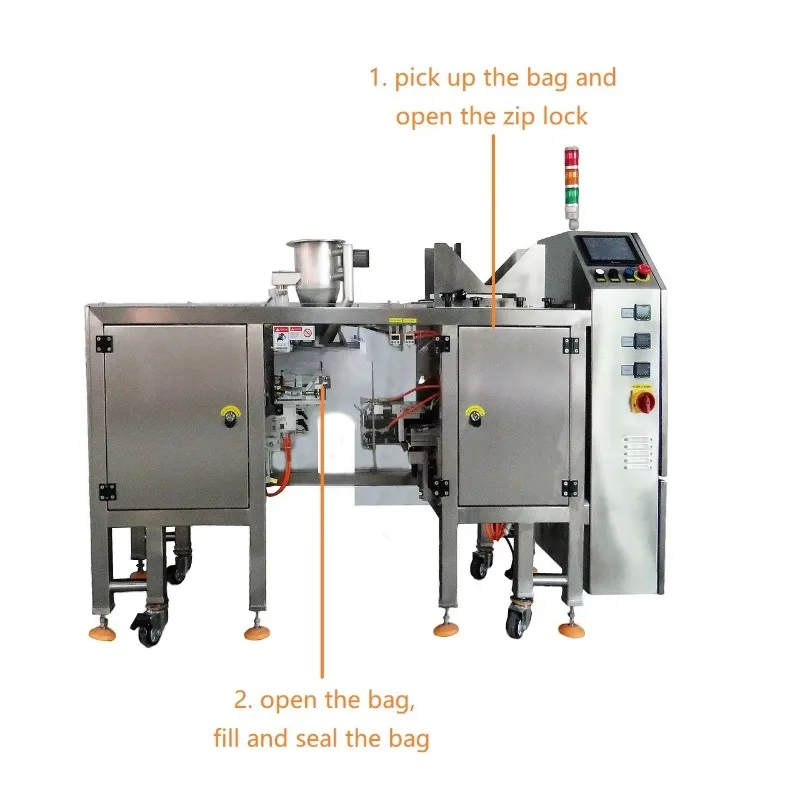

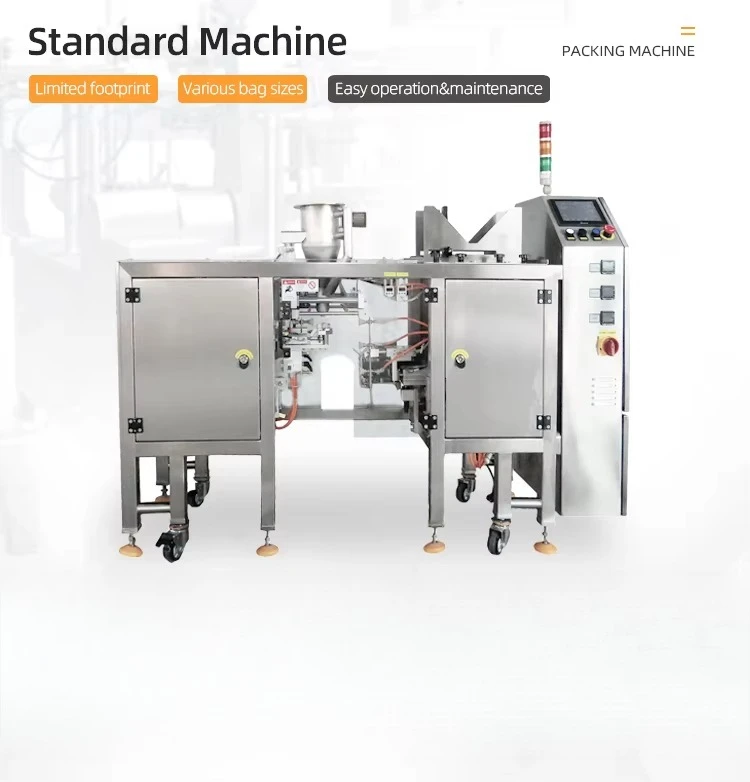

Mini doypack machine-the machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, filling and bag sealing. The flexibility of it allows you to customize your machine to meet your individual requirements!

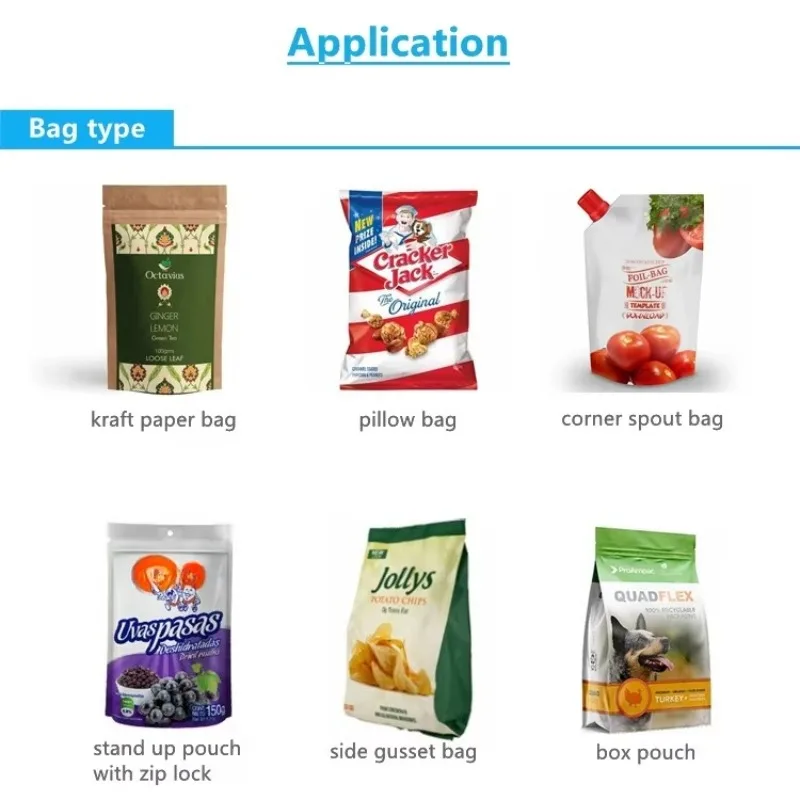

Doypack machine is suitable for all kinds of the premade bags, such as stand up pouch, zipper bag, box pouch, kraft paper bags, corner spout bags and so on.
Doypack machine is suitable for all kinds of the premade bags, such as stand up pouch, zipper bag, box pouch, kraft paper bags, corner spout bags and so on.

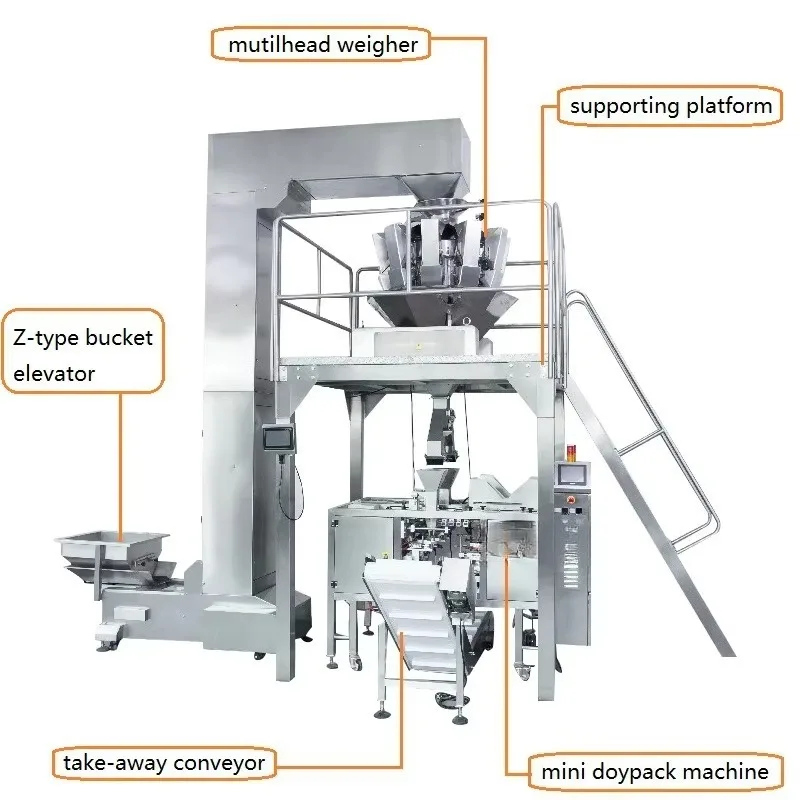

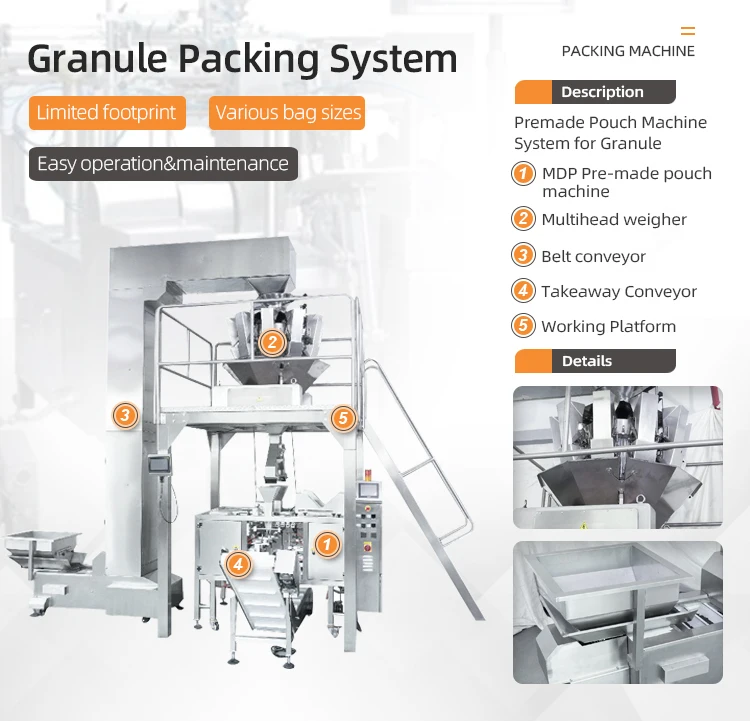

Granules Weighing and Packing Solution
Combine with the mutilhead weigher, this system can handle various granules, like snacks, frozen food, laundry pod, etc.
Weighing accuracy: 0.1-1.5g
Speed: 8-16bags/min
(also we have twin doypack machine can reach up to 30bags/min)
Material: Full SS#304(food grade)
Bag dimension: adjustable

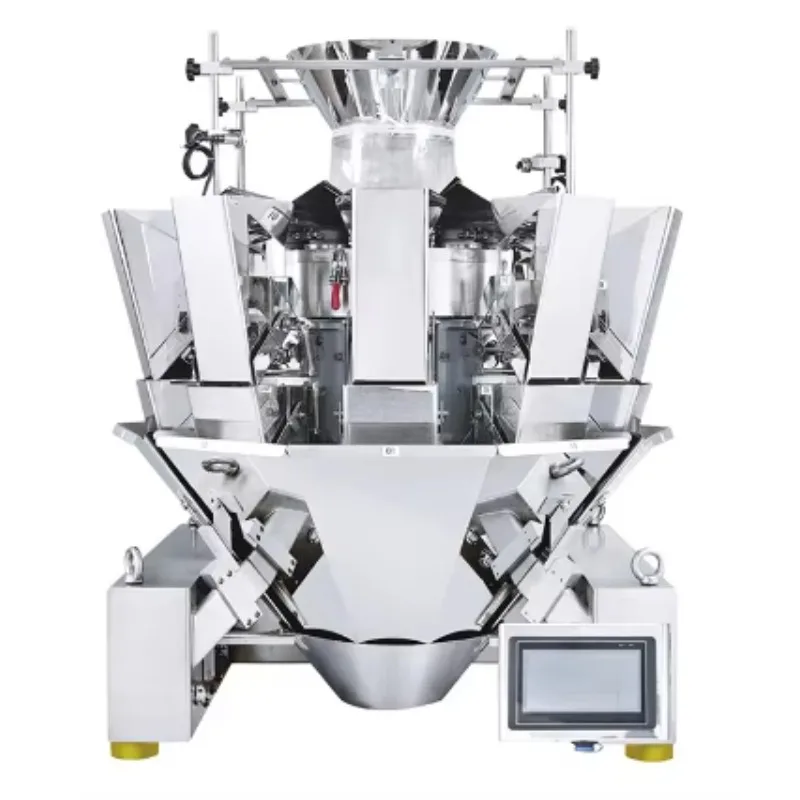

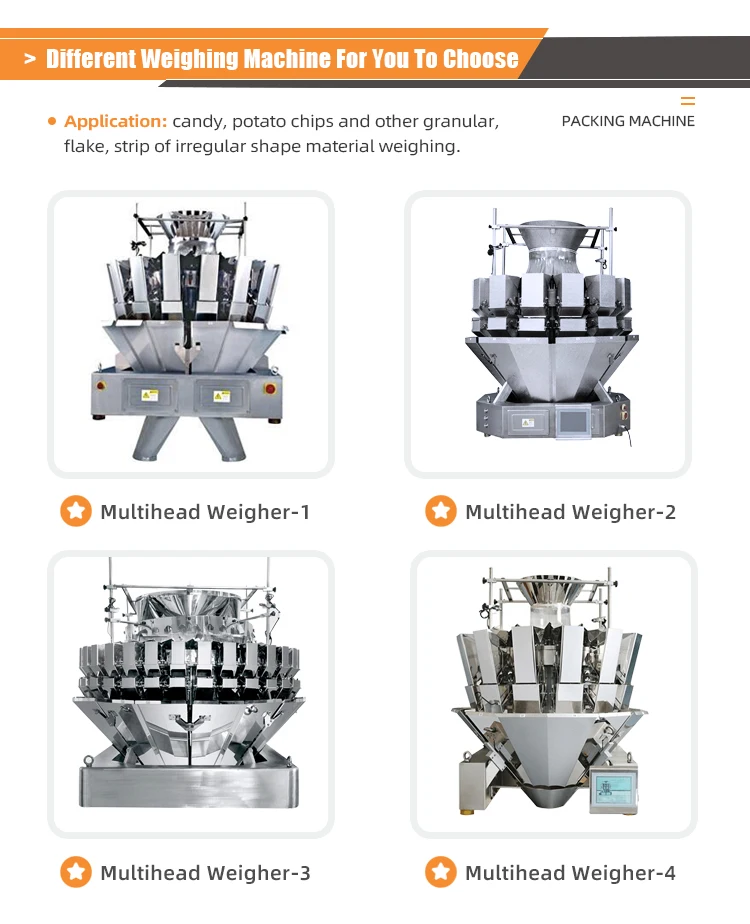

Multihead Weigher
– Auto-selection, one-plus two collecting hopper system, and high precision digital weighing sensor.
– Combination bucket could dump orderly to avoid products jam up.
– High-Speed and High-Accuracy mode is optional to pick.
– High-Speed and High-Accuracy mode is optional to pick.
|
Machine Series
|
Doypack Machine
|
||||
|
Model No.
|
Y-MDP1
|
Y-MDP2
|
Y-MDP3
|
||
|
Bag Width
|
70-280mm
|
70-280mm
|
70-330mm
|
||
|
Bag Length
|
80-320mm
|
80-440mm
|
80-440mm
|
||
|
Bag Type
|
Doypack with zipper, ¾ side seal pouch, stand-up pouches,flat pouch,
gusset bags,side spout bag,etc.
|
||||
|
Power Supply
|
110V/220V/380V/415V, 50/60HZ
|
||||
|
Air Consumption
|
7.0 CFM@80 PSI
0.14m3/m3
|
||||
|
Pneumatic Parts
|
PIAB Vacuum Generator, Pneumatics component Airtac from Taiwan
|
||||
|
Certification
|
CE, CSA, UL, ROHS, ISO9001
|
||||

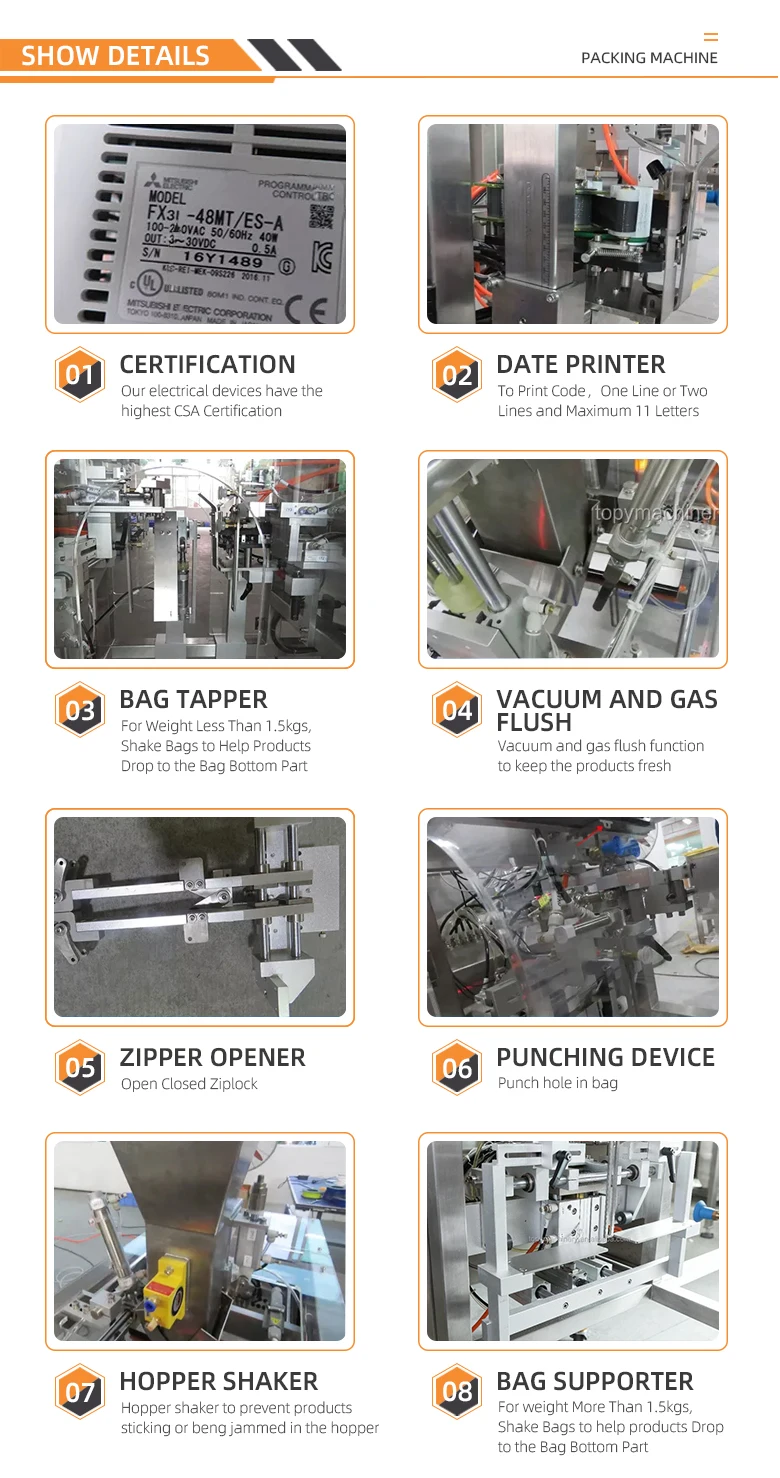

Function and characteristics:
1. Easy to operate,The packaging process is fully automated without manual operation.
2. Automatic checking: no pouch or pouch open error, no fill, no seal, avoid wasting.
3. Safety device: Machine stop at abnormal airpressure, heater disconnection alarm.
4. Adjustable bag width.
5. Glass safety door: It will stop working when you open the door, ensure the safety of operators.
6. Low loss of packing materials, high quality of the sealing part, to improved the product specification.
7. Different feeding hoppers: for solid, liquid, thick liquid ,powder and so on.
8. Bag materials: Suits in extensive range.
4. Adjustable bag width.
5. Glass safety door: It will stop working when you open the door, ensure the safety of operators.
6. Low loss of packing materials, high quality of the sealing part, to improved the product specification.
7. Different feeding hoppers: for solid, liquid, thick liquid ,powder and so on.
8. Bag materials: Suits in extensive range.
